Description
Parameters

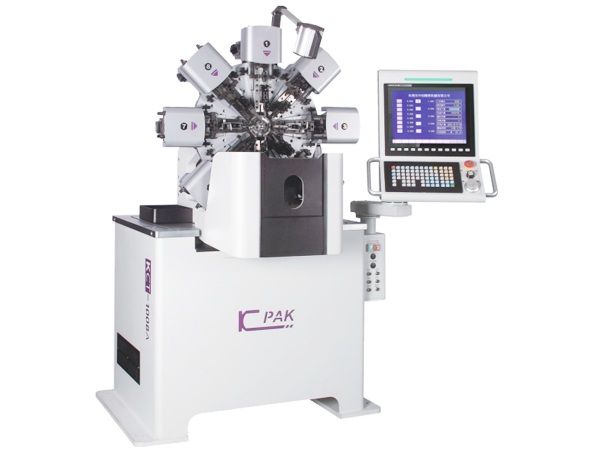

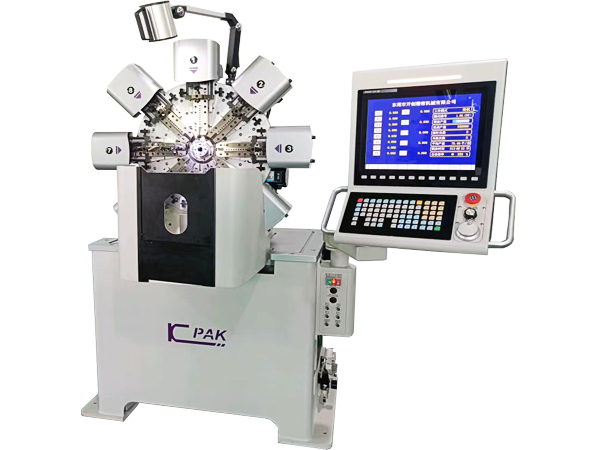

| 机型 | Model | KCT-1008A |
| 轴数 | Number Of Axes | 10 |
| 加工线径 | Wire Diameter | 0.1-0.8mm |
| 加工送线速度 | Max. Wire Feed Speed | 90m/min |
| 旋绕比 | Spring Index | 4 |
| 送线轮组数 | Feed Roller Group | 1 Groups |
| 送线伺服电机 | Feed Servo Motor | 0.75kw |
| 转芯伺服电机 | Quill Servo Motor | 0.75kw |
| 成形伺服电机 | Fomer Servo Motor | 0.75kw *8 |
| 卷曲伺服电机 | Spinner Servo Motor | 0.15kw |
| 气压 | Air pressure | 0.2-0.4Pa |
| 汽缸 | Air cylinder | 5 |
| 探针 | Probe | 4 |
| 跑线感应 | Running line induction | 2 |
| 电源 | Power | 3P/380V 50/60HZ |
| 机器尺寸(长*宽*高) | Dimension (L*W*H) | 1100*660*1650mm |
| 机器重量 | Weight | 900 KG |
